AN-132

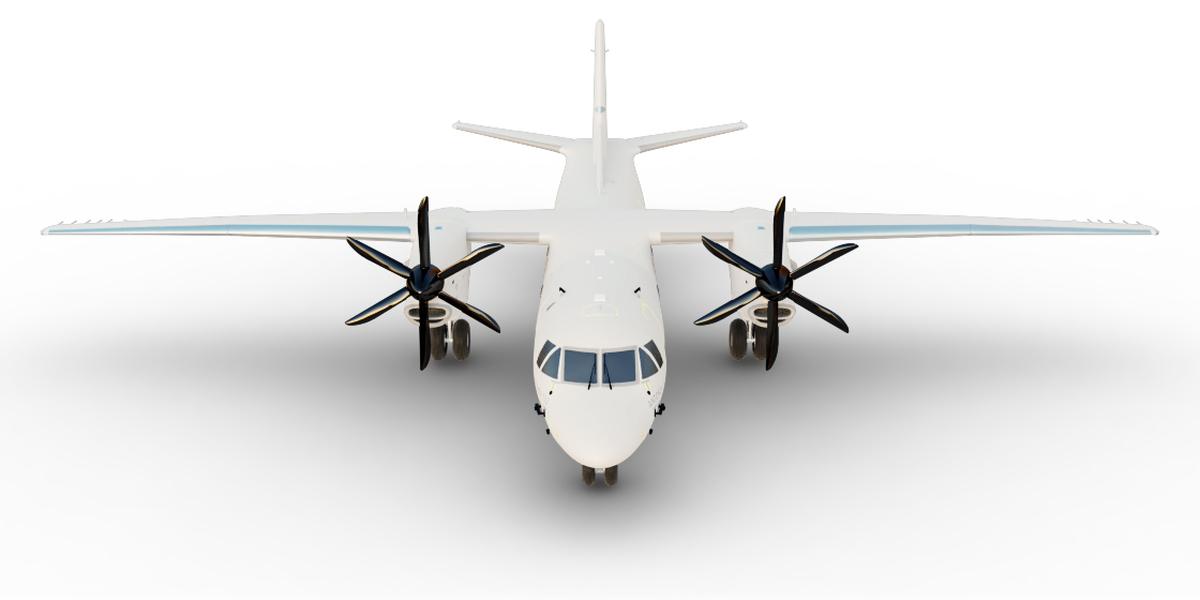

AN-132 Light transport aircraft

Max. payload (t)
9,2
Transportation ability
soldiers/paratroopers/wounded
75 / 46 / 27
Range (with cargo 6 t) (km)
3500

Characteristics

Brochure Antonov An-132

The AN-132 light transport aircraft is created on the basis of ANTONOV’s vast experience in development of the transport aircraft in combination with the most innovative technologies. The new aircraft is a deep modernization of the world-known AN-32. The AN-132 inherits the best features of its predecessor: ability to be operated in hot climate and high mountain conditions, take off and land from/to all types of airfields, reliability and flexibility in operation. The AN-132 differs from the AN-32 with a new level of technical, economic and flight performance data: increased load-carrying capacity, greater flight range, high fuel efficiency, lower noise and emissions level. The AN-132 is intended for operation on short and medium-haul routes.

Overall Dimensions

Overall length (m)	24,53
Overall height (m)	8,8
Wing span (m)	29,2

Performance

Max. cruising altitude (m)	8230
Max. cruising speed (km/h)	550
Range [6 t of PL] (km)	3500
MTOW (kg)	31500
Max payload (kg)	9200

Take-off run [G 28,5, ISA, SL] (m)	895
Landing run [G 27,5, ISA, SL] (m)	570

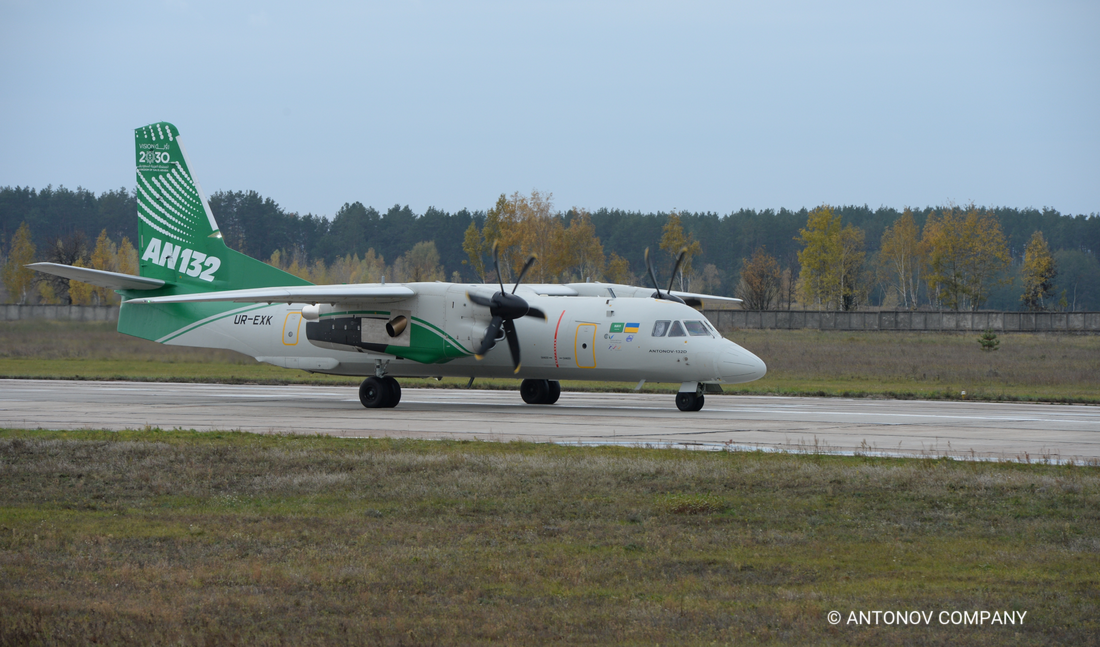

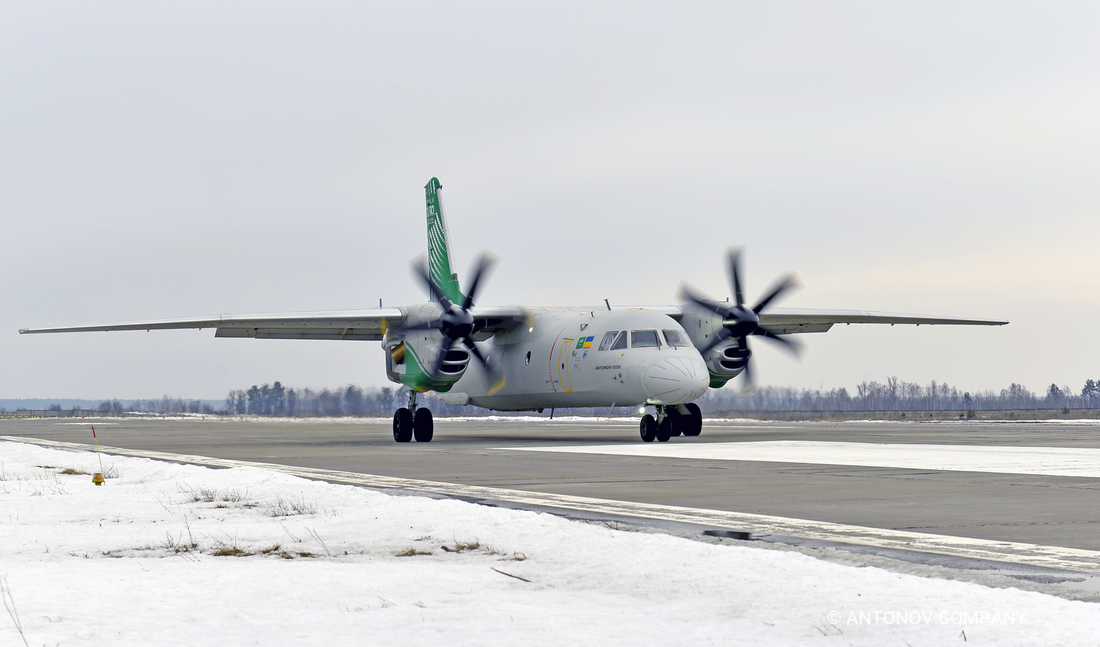

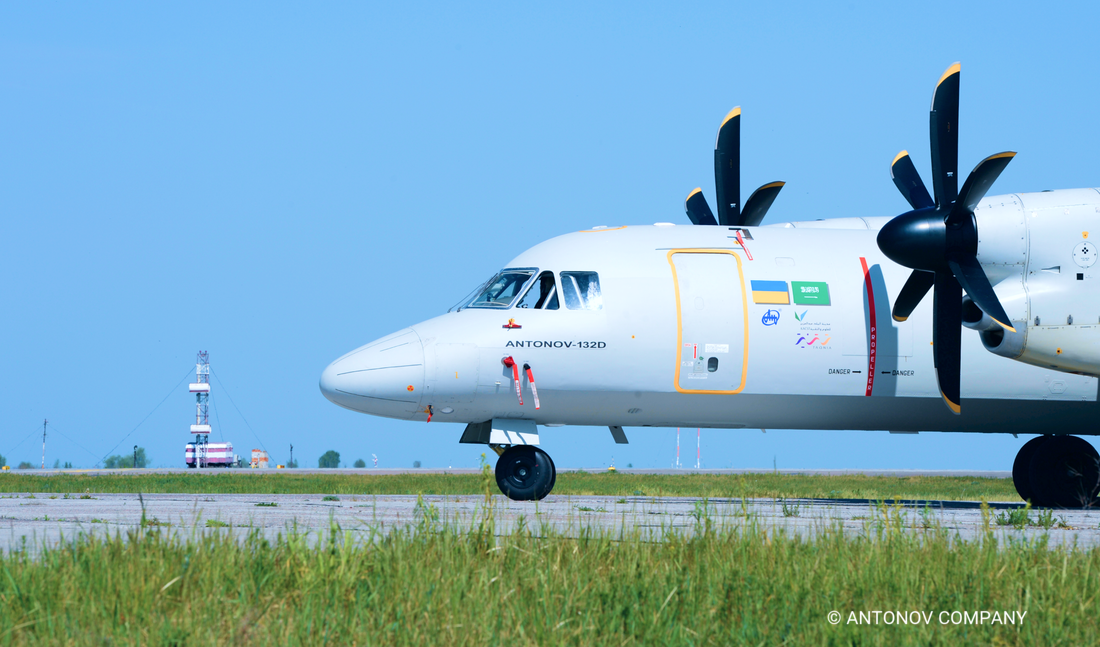

Modifications

AN-132 is a basic platform for designing of a number of modifications for civil and military purposes.

AN-132ISR, an airplane for optical/electronic, radar and radio reconnaissance
AN-132MPA, a light airplane for marine patrol
AN-132 Gunship, a light armed airplane of Armed ISR class, for counter-terrorist application
AN-132ME, a light medical evacuation airplane
AN-132SAR, a light marine search and rescue airplane
AN-132FF, a fire-fighting airplane

Program Director AN-132 Oleksandr Khokhlov khokhlov@antonov.com

Advantages of AN-132

feature-icon Operation in conditions of extreme climatate

feature-icon Assurance of effective work in high mountain conditions

The AN-132 is able to work around the clock, in a wide range of climate and weather conditions at any latitudes, to be operated at airfields with runways of different quality including short unpaved airfields and at mountain terrains. Onboard loading/unloading complex of the AN-132 allows autonomous operation of the aircraft at poor-equipped airdromes.

Efficient PW150D turboprop engine with Dowty R408 propeller provides AN-132 operation in mountain terrains and under hot climate conditions.

Modern navigation and radio communication equipment, multifunctional indicators

Autonomous operation at unequipped airfields due to availability of APU and airborne loading/unloading equipment

Possibility to take off and land at any airfield (including operation from/to unpaved runways). Pressurized cargo compartment with cargo ramp

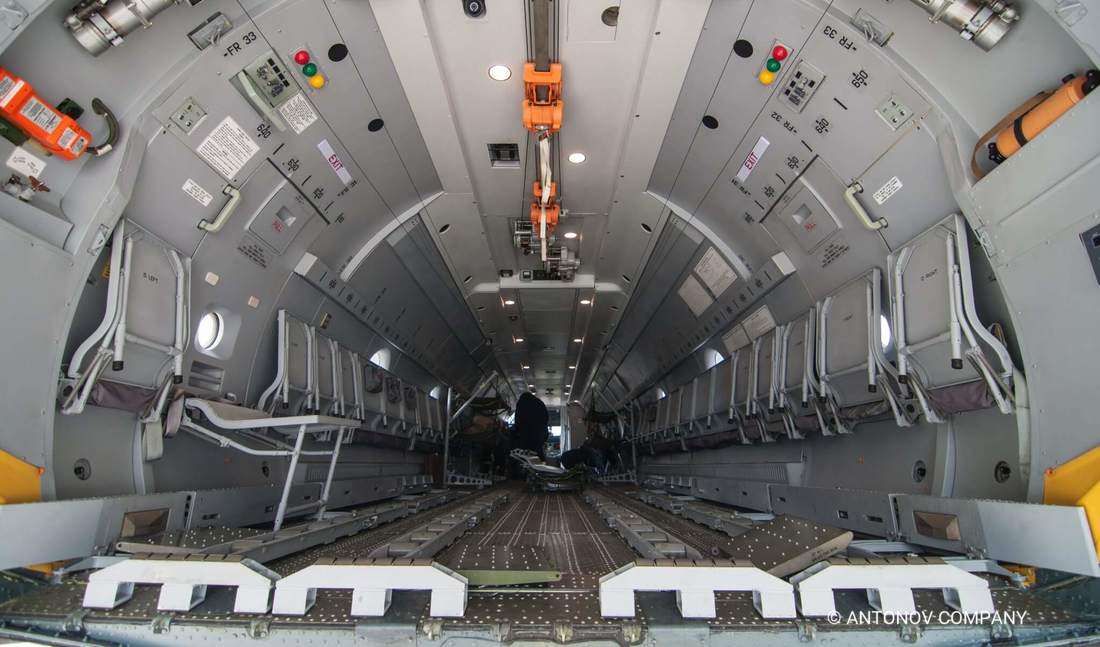

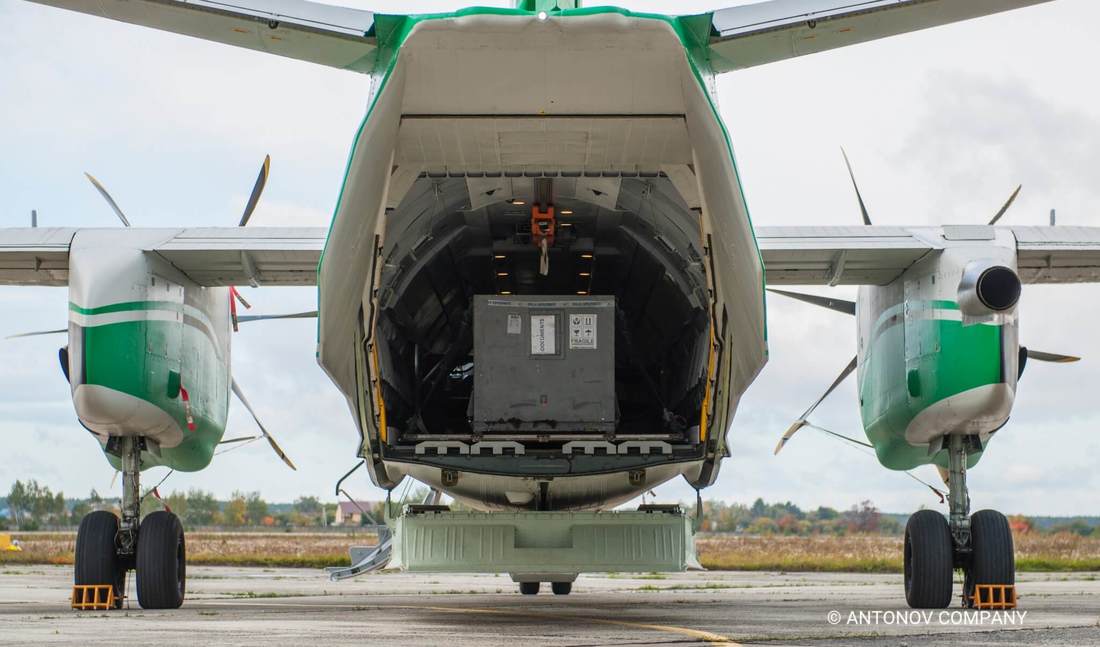

Cargo cabin

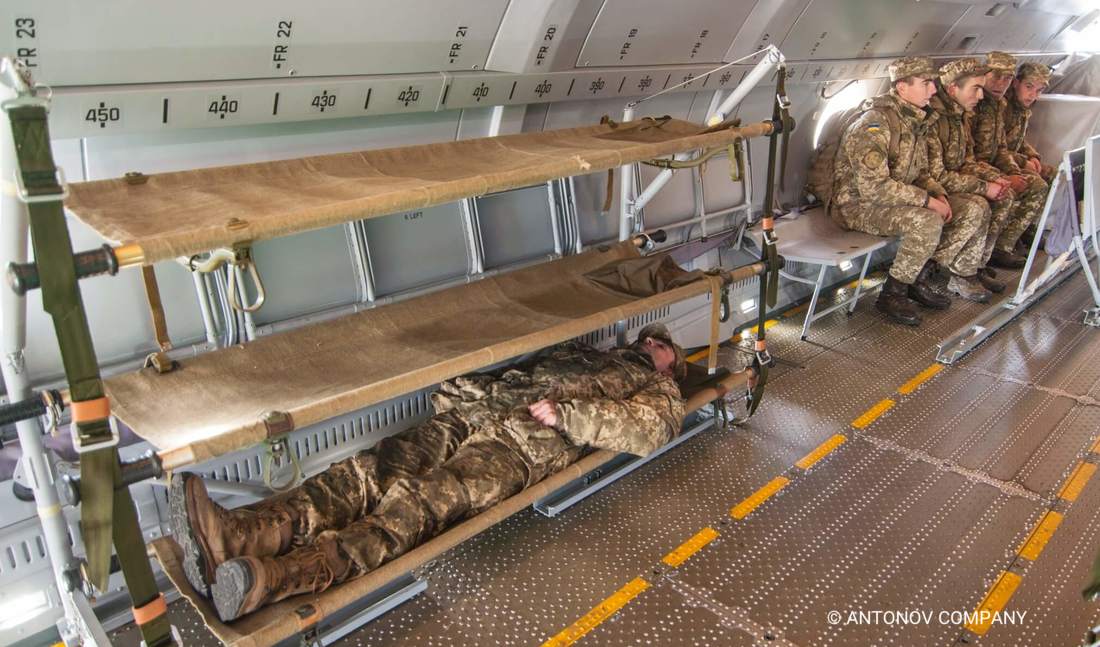

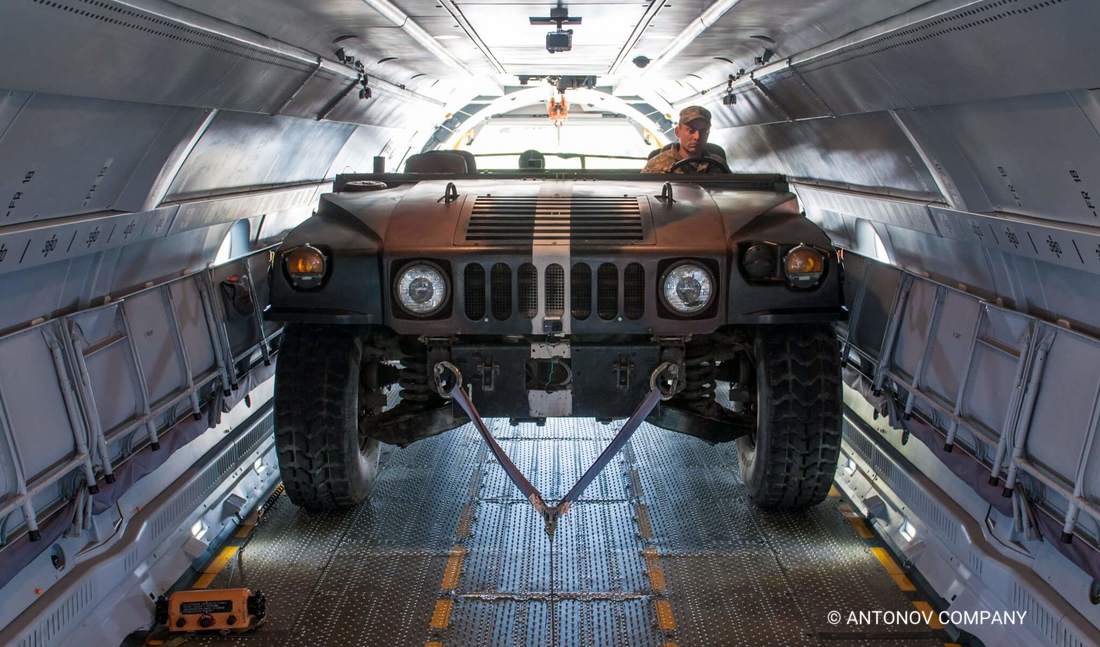

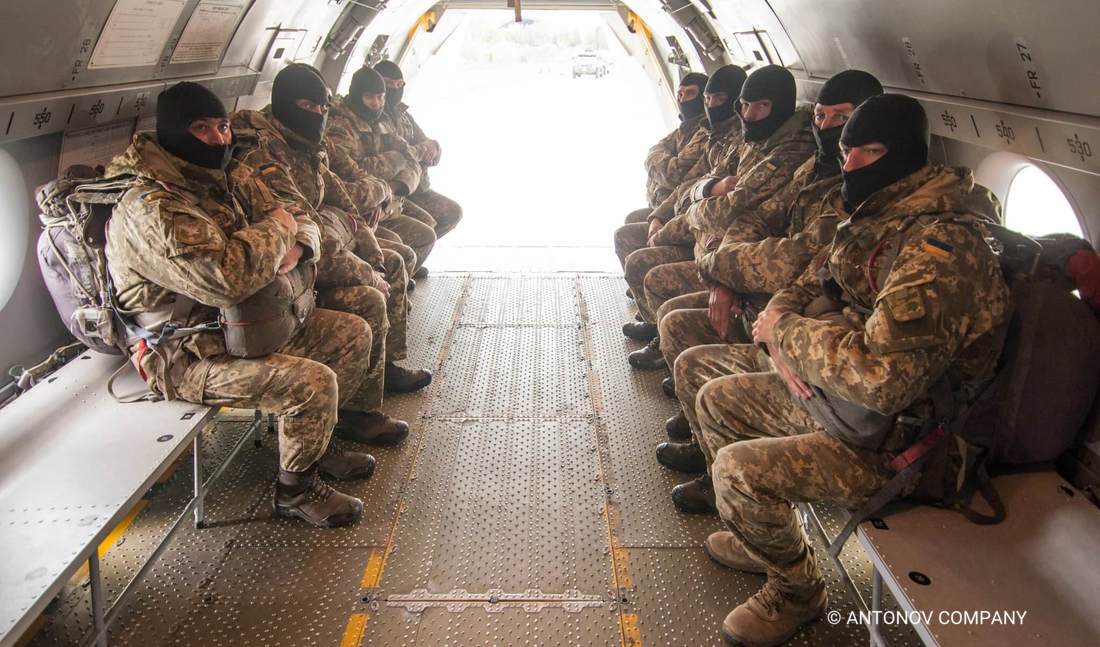

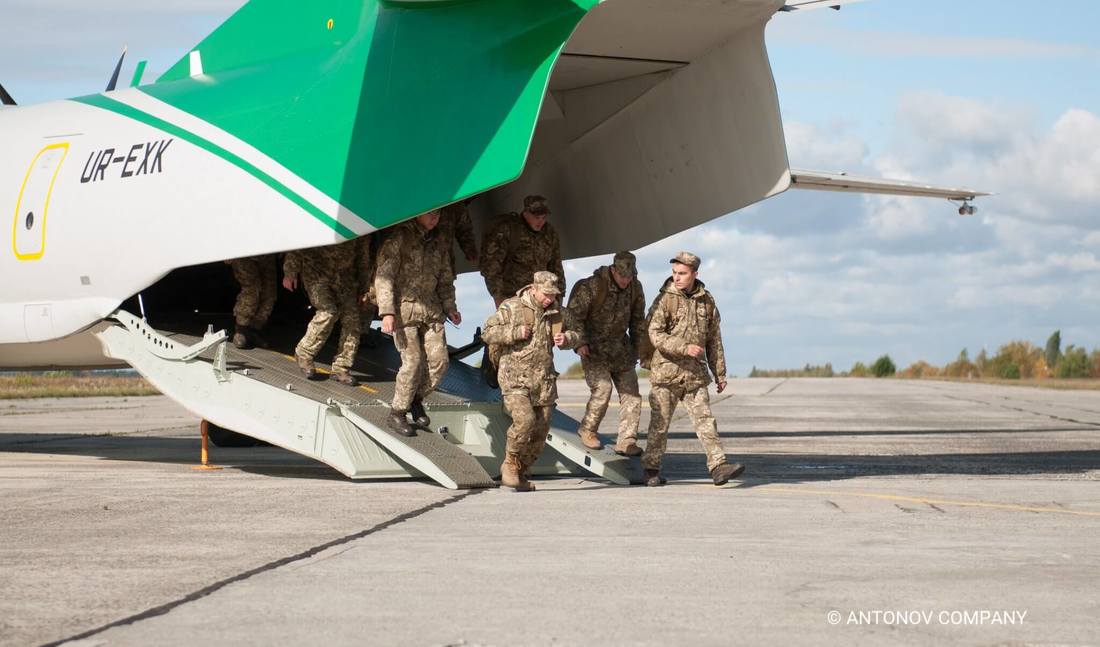

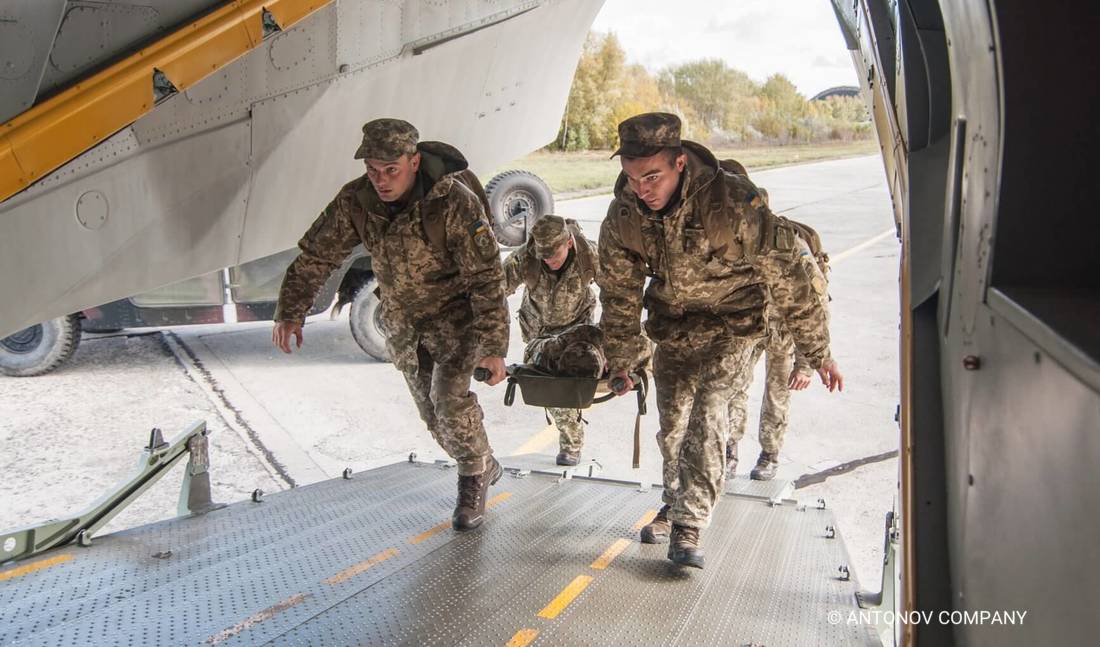

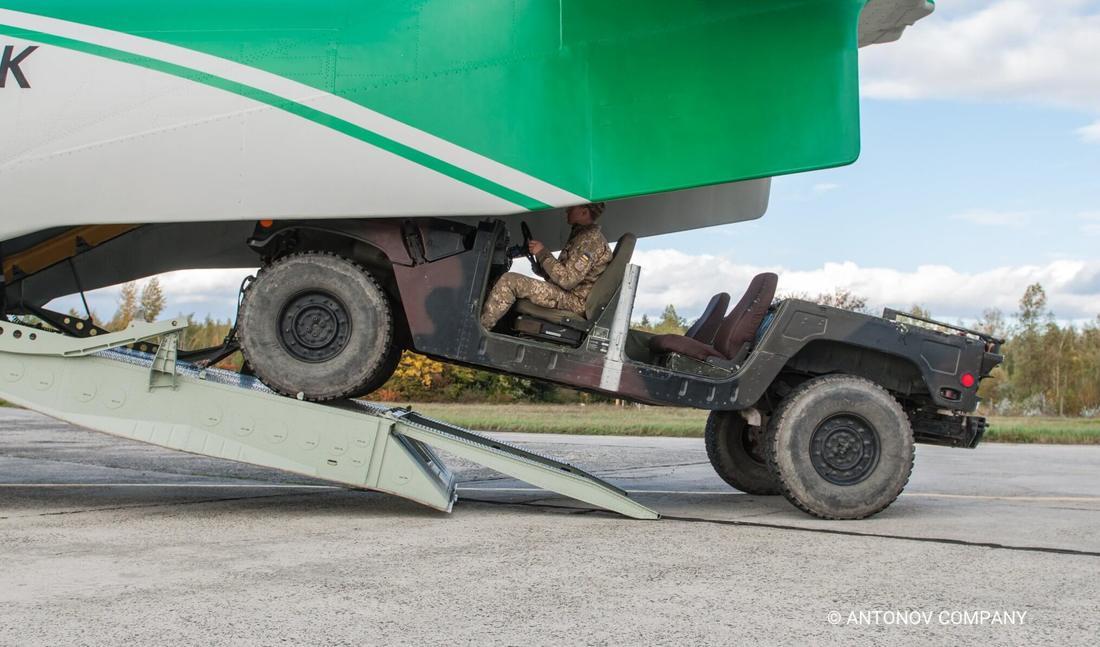

The new aircraft performs various tasks including transportation of cargoes “in bulk” or using aviation pallets as well as transportation of light self-propelled and nonself-propelled vehicles weighing up to 9.2 t, mail. In emergency situations the AN-132 is able to evacuate civilians from disaster areas, casualties at standard stretchers and airdropping of paratroop rescue teams.
